During powered flight, the rotor drag is overcome with engine power. When the engine fails, or is deliberately disengaged from the rotor system, some other force must be used to sustain rotor RPM so controlled flight can be continued to the ground. This force is generated by adjusting the collective pitch to allow a controlled descent. Airflow during helicopter descent provides the energy to overcome blade drag and turn the rotor. When the helicopter is descending in this manner, it is said to be in a state of Autorotative Flight (or Autorotation).
In effect the pilot gives up altitude at a controlled rate in return for energy to turn the rotor at an RPM which provides aircraft control. Stated another way, the helicopter has potential energy by virtue of its altitude. As altitude decreases, potential energy is converted to kinetic energy and stored in the turning rotor. The pilot uses this kinetic energy to cushion the touchdown when near the ground.
Most autorotations are performed with forward airspeed. For simplicity, the following aerodynamic explanation is based on a vertical autorotative descent (no forward airspeed) in still air. Under these conditions, the forces that cause the blades to turn are similar for all blades regardless of their position in the plane of rotation. Dissymmetry of lift resulting from helicopter airspeed is therefore not a factor, but will be discussed later.
During vertical autorotative flight, the rotor disk is divided into three regions:
The driven region, also called the propeller region, is nearest to the blade tips and normally consists of about 30 percent of the radius. The total aerodynamic force in this region is inclined slightly behind the rotating axis. This results in a drag force which tends to slow the rotation fo the blade.
The driving region or autorotative region, normally lies between about 25 to 70 percent of the blade radius. Total aerodynamic force in this region is inclined slightly forward of the axis of rotation. This inclination supplies thrust which tends to accelerate the rotation of the blade.
The stall region includes the inboard 25 percentof the blade radius. It operates above the stall angle of attack and causes drag which tendsto slow the rotation of the blade.

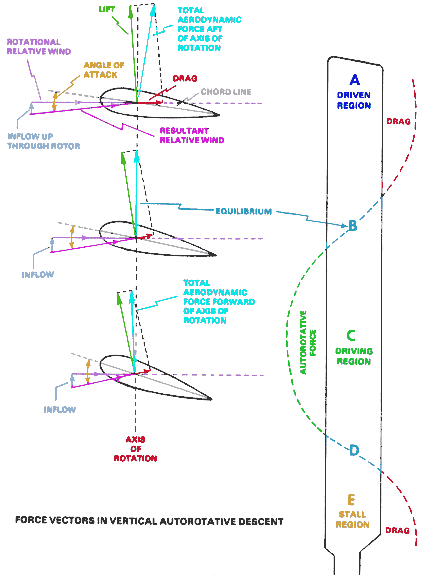

The following graphic shows three blade sectionsthat illustrate force vectors in the driven region "A", a region of equilibrium "B" and the driving region "C":
The force vectors are different in each region, because the rotational relative wind is slower near the blade root and increases continually toward the blade tip. When the inflow up through the rotor combines with rotational relative wind, it produces different combinations of aerodynamic force at every point along the blade.
In the driven region, the total aerodynamic force acts behind the axis of rotation, resulting in an overall dragging force. This area produces lift but it also opposes rotation and continually tends to decelerate the blade. The size of this region varies with blade pitch setting, rate of descent, and rotor RPM. When the pilot takes action to change autorotative RPM, blade pitch, or rate of descent, he is in effect changing the size of the driven region in relation to the other regions.
Between the driven region and the driving region is a point of equilibrium. At this point on the blade, total aerodynamic force is aligned with the axis of rotation. Lift and drag are produced, but the total effect produces neither acceleration nor deceleration of the rotor RPM. Point "D" is also an area of equilibrium in regard to thrust and drag.
Area "C" is the driving region of the blade and produces the forces needed to turn the blades during autorotation. Total aerodynamic force in the driving region is inclined forward of the axis of rotation and produces a continual acceleration force. The driving region size varies with blade pitch setting, rate of descent and rotor RPM. The pilot controls the size of this region in relation to the driven and stall regions in order to adjust autorotative RPM. For example, if the collective pitch stick is raised, the pitch angle will increase in all regions. This causes the point of equilibrium "B" to move toward the blade tip, decreasing the size of the driven region. The entire driving region also moves toward the blade tip. The stall region becomes larger and the total blade drag is increased, causing RPM decrease.
A constant rotor RPM is achieved by adjusting the collective pitch control so blade acceleration forces from the driving region are balanced with the deceleration forces from the driven and stall regions.
Aerodynamics of Autorotative State in Forward Flight
Autorotative force in forward flight is produced in exactly the same manner as when the helicopter is descending vertically in still air. However, because forward flight changes the inflow of air up through the rotor disk, the driving region and stall region move toward the retreating side of the disk where angle of attack is larger:
Because of lower angles of attack on the advancing side blade, more of that blade falls into the driven region. On the retreating side blade, more of the blade is in the stall region, and a small section near the root experiences a reversed flow. The size of the driven region on the retreating side is reduced.
Autorotative Flight may be divided into three distinct phases:
The Entry
The Steady State Descent
The Flare and Touchdown.
Each of these phases is aerodynamically different than the others.
Entry into autorotation is performed following loss of engine power. Immediate indications of power loss are rotor RPM decay and an out-of-trim condition. Rate of RPM decay is most rapid when the helicopter is at high collective pitch settings. In most helicopters it takes only seconds for the RPM decay to reach a minimum safe range.
Pilots must react quickly and initiate a reduction in collective pitch that will prevent excessive RPM decay. A cyclic flare will help prevent excessive decay if the failure occurs at high speed. This technique varies with the model helicopter. Pilots should consult and follow the appropriate aircraft Operator's Manual.

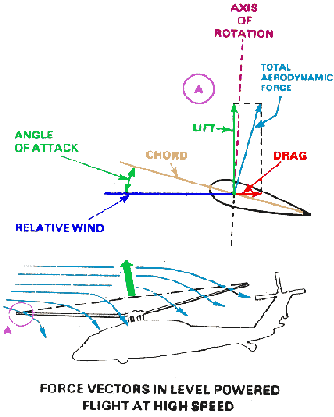

The following graphic shows the airflow and force vectors for a blade in powered flight at high speed:
Note that the lift and drag vectors are large and the total aerodynamic force is inclined well to the rear of the axis of rotation. If the engine stops when the helicopter is in this condition, rotor RPM decay is rapid.
To prevent RPM decay, the pilot must promptly lower the collective pitch control to reduce drag and incline the total aerodynamic force vector forward so it is near the axis of rotation. Remember in some helicopters you can go from normal operating rotor RPM to an unrecoverable blade stall condition in Under 10 Seconds.

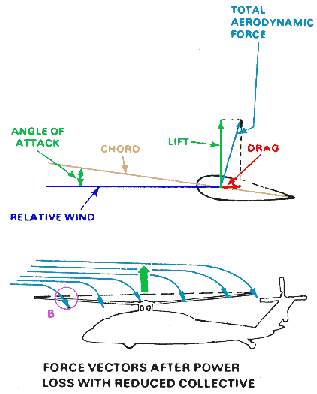

The following graphic shows the airflow and force vectors for a helicopter just after power loss:
The collective pitch has been reduced, but the helicopter has not started to descend. Note that lift and drag are reduced and the total aerodynamic force vector is inclined further forward than it was in powered flight.
As the helicopter begins to descend, the airflow changes. This causes the total aerodynamic force to incline further forward. It will reach an equilibrium that maintains a safe operating RPM.
The pilot establishes a glide at the proper airspeed which is 50 to 75 knots, depending on the helicopter and its gross weight. Rotor RPM should be stabilized as outlined by each helicopters POH.
The following graphic shows the helicopter in a Steady State Descent:
Airflow is now upward through the rotor disk due the descent. Changed airflow creates a larger angle of attack although blade pitch angle is the same as it was in the previous picture, before the descent began.
Total aerodynamic force is increased and inclined forward so equilibrium is established. Rate of descent and RPM are stabilized, and the helicopter is descending at a constant angle.
Angle of descent is normally 17 degrees to 20 degrees, depending on airspeed, density altitude, wind, the particular helicopter design, and other variables.

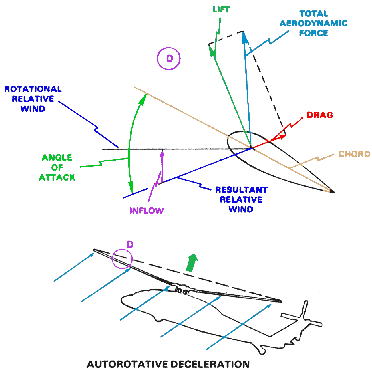

The following graphic illustrates the aerodynamics of the autorotative Flare:
To successfully perform an autorotative landing, the pilot must reduce airspeed and rate of descent just before touchdown. Both of these actions can be partially accomplished by moving the cyclic control to the rear and changing the attitude of the rotor disk with relation to the relative wind (flaring).
The attitude change inclines the total force of the rotordisk to the rear and slows forward speed. It also increases angle of attack on all bladesby changing the inflow of air.
As a result, total rotor lifting force is increased and rate of descent is reduced. RPM also increases when the total aerodynamic force vector is lengthened, thereby increasing blade kinetic energy available to cushion the touchdown. After forward speed is reduced to a safe landing speed, the helicopter is placed in a landing attitude as collective pitch is applied to cushion the touchdown.
It is important to note that maintaining both a level attitude and heading at touchdown are key to a successful outcome of Autorotative Flight.
The driven region, also called the propeller region, is nearest to the blade tips and normally consists of about 30 percent of the radius. The total aerodynamic force in this region is inclined slightly behind the rotating axis. This results in a drag force which tends to slow the rotation fo the blade.
